OEM & custom parts

From drawing to finished mesh and filter parts

Send a PDF, DWG, STEP file, worn sample or marked-up photos — we review material, tolerance and manufacturability, then return DFM feedback and a technical quotation. NDA available on request.

Drawing + finished part

Common requests· 01

Common custom fabrication requests.

KAIFIL supports drawing-based fabrication for replacement parts, OEM filter elements and special mesh assemblies used in industrial filtration, screening and process equipment.

Common RFQs include stainless steel mesh cylinders, welded filter sleeves, framed mesh panels, filter discs, multilayer screen packs, strainer baskets, conical screens, perforated-supported mesh parts, wedge wire assemblies and custom components made from drawings or samples.

Send drawings, worn sample photos, installation dimensions, material grade, filtration rating, working conditions and annual quantity. If details are missing, engineering returns a short DFM note before quotation.

Fabrication capabilities· 02

What we can make from mesh.

Cutting & slitting

Discs, strips and shaped blanks cut to size from roll or sheet.

Edging & framing

Bound edges, metal rims and frames for handling and sealing.

Welding

Spot, seam and TIG welding for cylinders, baskets and assemblies.

Stamping & forming

Deep-drawn and formed mesh parts to drawing.

Assembly

Multi-layer packs, supported elements and complete units.

Cleaning & packing

Degreasing, marking and export packaging to order requirements.

Custom workflow· 03

Four phases from RFQ to shipment.

Send drawing

PDF, DWG, STEP or clear sample photos with key dimensions.

Day 0

DFM feedback

Material, tolerance and cost feedback from engineering before you commit.

1–2 days

Sample approval

Sample or first-article photos for confirmation.

Per project

Batch production

Production, inspection, packing and shipment with documents.

Confirmed per quote

Workable materials· 04

Materials we fabricate.

Material	Typical form	Notes
SS304	Woven mesh rolls / cut discs / perforated sheet / welded cylinders	General industrial screening and dry filtration; confirm chloride exposure before substituting for SS316L.
SS316L	Woven mesh / pleated cartridges / sintered laminates / fabricated baskets	Common for food / chemical / chloride-aware duty; passivation available when stated on PO.
SS321	Woven mesh and fabricated parts for elevated temperature	High-temperature service — send peak operating and clean temperature on RFQ.
Duplex (2205 / 2507)	Mesh overlays / strainer baskets / custom weldments	Quoted for aggressive or high-chloride duty when SS316L is insufficient — grade confirmed per fluid data.
Titanium (Gr2 / Gr5)	Mesh discs / thin support plates / specialty assemblies	Corrosion-critical or lightweight duty — confirm grade and thickness from drawing.
Nickel alloys (Inconel / Hastelloy)	Mesh / sintered laminates / welded filter elements	High-temperature or severe chemical streams — alloy selected from concentration and temperature profile.
Brass / copper mesh	Woven mesh discs and panels	Screening / shielding and specialty mesh — confirm compatibility with process media and cleaning agents.
Carbon steel (perforated / expanded)	Support plates / guards / backing for mesh lamination	Often paired with stainless mesh overlay — galvanic and process compatibility must be approved on drawing.
Monel / copper-nickel	Woven mesh and fabricated strainer elements	Seawater and brine intake applications — send chloride level and cleaning method.
Specialty alloys (on drawing)	Any fabricated form quoted from specification	Inconel / Hastelloy / duplex and other grades quoted when mill certificate and processing route are defined on RFQ.

File formats· 05

Send what you have.

PDFDWGSTEPIGESSample photos

Upload small reference files in the inquiry form. For large CAD packages or many files, emailsales@kaifil.com after submitting and mention your company name or product.

Fabricated parts· 06

Recent custom work.

Laser-cut stainless steel mesh filter discs stacked for custom fabrication order

TIG-welded stainless steel mesh filter cylinder in progress on fabrication bench

Spot-welded multilayer extruder screen pack before edge trimming

Digital caliper measuring OD of custom metal filter sleeve against drawing

Framed stainless steel mesh panel with bound edges for handling and sealing

Conical pipeline strainer screen fabricated for commissioning duty

Perforated plate with woven mesh overlay assembled for filter support application

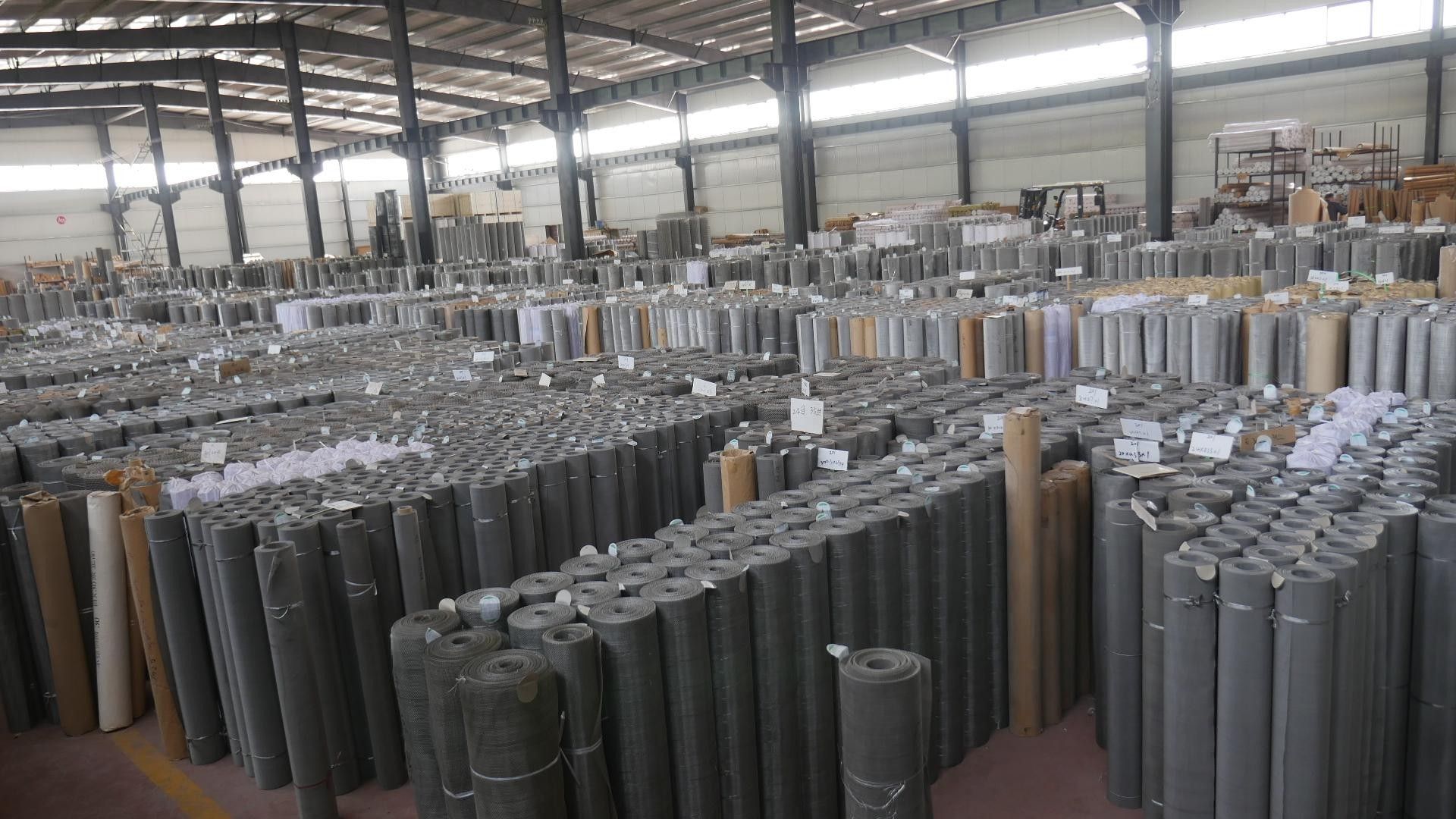

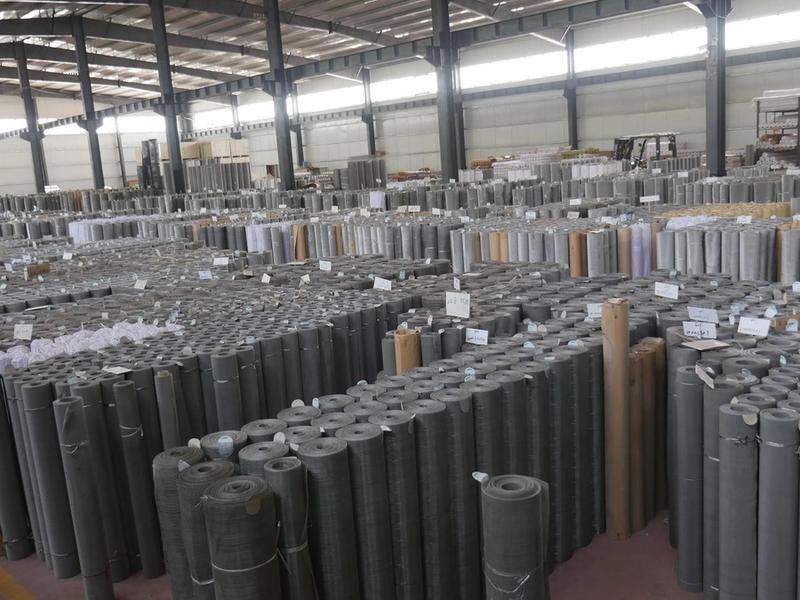

Custom fabricated filter parts packed and labeled for export shipment

Confidentiality· 07

Your drawings stay your drawings.

We sign NDAs on request before you share proprietary drawings or samples. Your files are used only for quotation, DFM review and production of your order — they are not shared with third parties, reused for other customers or published without written permission. Project files can be deleted on request after the order closes. If your quality system requires a named confidentiality contact or data-retention period, state this when opening the project.

FAQ· 08

Custom fabrication questions.

What drawing formats do you accept?

PDF, DWG, STEP, IGES and marked-up sample photos. List critical tolerances on the drawing.

Can you sign an NDA?

Yes—request NDA execution when opening the project.

Is there a sample stage?

Samples or first-article confirmation are offered when drawing complexity or validation requires it—confirmed per quote.

What is the typical lead time for custom parts?

After drawing review and material confirmation; sampling may apply for new weldments—confirmed per quote.

What dimensional tolerances can you hold on fabricated mesh parts?

Tolerance depends on feature type, material and process — cutting, welding, forming and assembly each have practical limits. Send critical dimensions and tolerance classes on the drawing; we return DFM feedback listing achievable ranges before you commit to batch production. First-article dimensional reports are available when specified on the PO.

What are MOQ, sample charges and packing-mark requirements?

MOQ and any sample or first-article charge depend on process steps, alloy and inspection level — confirmed per quote, not from a single site-wide number. Export packing can follow your PO spec (carton, crate, VCI, pallet pattern) and part-number or revision marking on each piece when required. State annual quantity, sample need and marking rules on the RFQ.

Have a drawing ready? Get DFM feedback.

Attach small drawings, sample photos or PDFs in the form below. For large CAD packages, send them by email after the inquiry so we can match the files.
