Process notes· 05
Process notes for ordering.

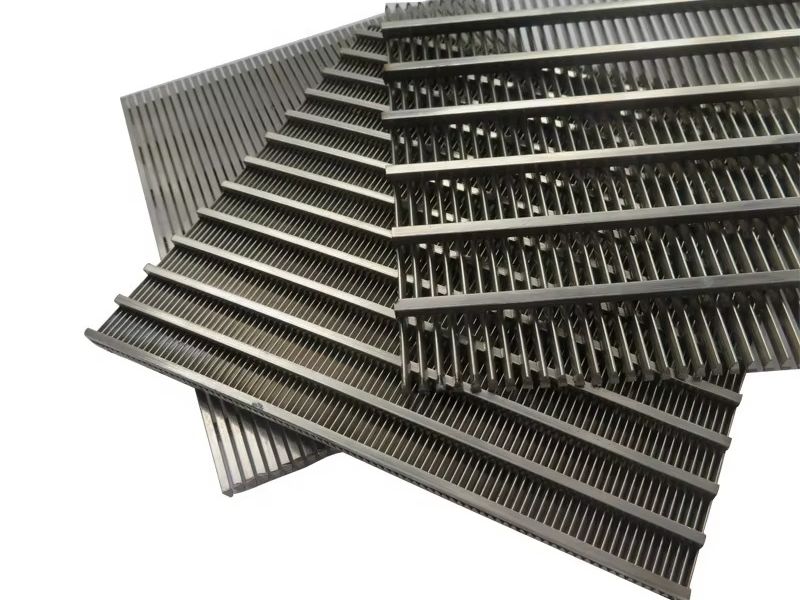

Mining and aggregate screening prioritises throughput, wear life and rapid replacement over fine micron retention — abrasion, slot width, open area and support structure drive design. Values below are quotation starting points; confirm particle size, moisture, attachment detail and wear history per project.
| Parameter | Typical range (mining / aggregate) | Notes for RFQ |
|---|---|---|
| Duty | Dewatering; sizing; media retention | Wet vs dry; clay content |
| Slot / aperture | Approx. 0.5–3 mm wedge wire; coarser mesh on decks | Incumbent spec or sample accelerates match |
| Open area | High open area favoured for throughput | Balance with structural strength |
| Material | SS304/SS316L; carbon steel support options | Corrosive wash water may need 316L |
| Panel / cylinder size | Per deck or drum drawing | Hook; bolt; weld attachment detail |
| Wear life target | Hours or tonnes if known | Helps profile wire and support selection |
Operating limits vary by equipment — values confirmed per project.
Send worn screen photos with ruler, slot measurement and hook or bolt layout. Perforated-plus-wedge wire assemblies need combined drawing with total thickness. Emergency replacement lead time and MOQ are confirmed per quote after abrasion duty and attachment review.
Operating limits vary by equipment — values above are typical ranges, confirmed per project.
