Food & Beverage Filtration — SS316L Mesh & Strainers

Industry challenges· 01

What makes this application demanding.

CIP chemical exposure

Caustic, acid and sanitiser cycles attack SS304 and gasket materials — SS316L is common for aggressive CIP but concentration, temperature and contact time must be listed on the RFQ for grade and seal compatibility.

Hygiene and sanitary cleanability

Dead zones in strainer baskets, cartridge seals and mesh overlaps trap product and biofilm — design must allow drain-down, inspection and manual or CIP cleaning access. Note cleaning method and inspection frequency.

Product retention without blinding

Sugars, grains and fibrous slurries blind fine mesh quickly — slot or mesh opening must balance product recovery with throughput. Share particle size, viscosity and acceptable pressure drop.

Audit and vendor qualification

Food plants request material certificates, dimensional records and compliance statements for vendor files — define document package and destination market early to align lead time.

Why choose KAIFIL· 02

Why choose KAIFIL for this application.

SS316L for washdown and CIP

Mesh, wedge wire and cartridge bodies are quoted in SS316L for most food-contact screening and liquid polish — alloy and surface finish confirmed against your CIP protocol before production.

Cleanable cartridge and screen forms

Pleated metal cartridges, wedge wire panels and removable baskets are selected for back-flush or manual cleaning access — not only initial micron rating.

Traceability on repeat supply

Lot traceability and MTC available when specified on the PO — repeat orders can align mesh lot and cap machining for audit consistency across export shipments.

Products matched to this requirement.

Plain weave stainless steel wire mesh sample under inspection

Plain Weave Wire Mesh

Sieving, vibratory deck and process screens where square mesh aperture suits dry or wet food duty.

Typical specFood-grade SS316L rolls; cut panels with folded edges

View product →

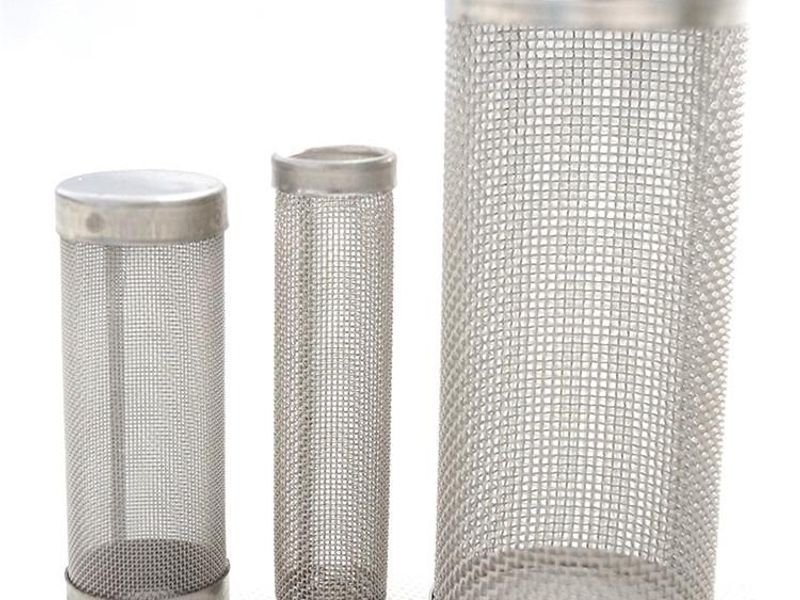

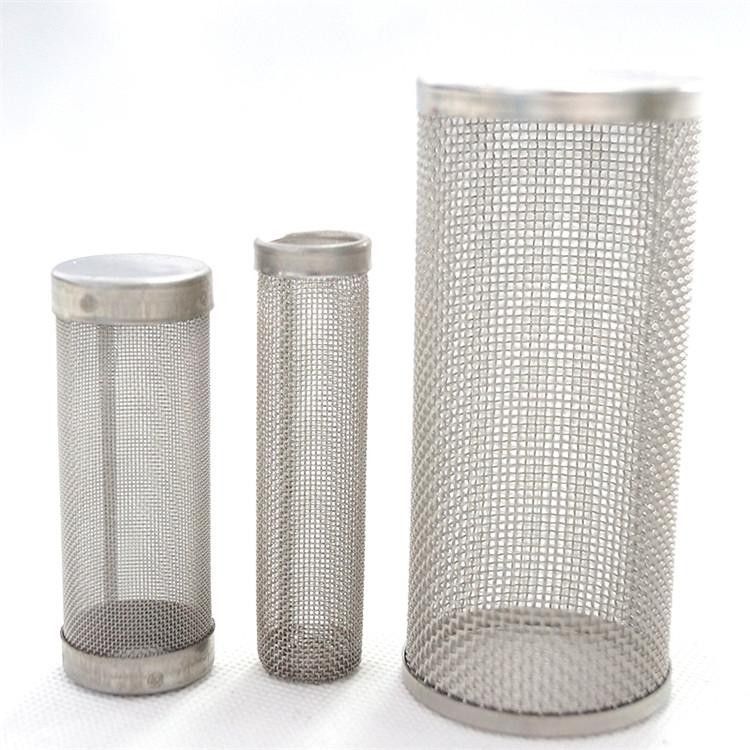

Stainless steel wire mesh screen tube samples

Wedge Wire Screen Pipe

Non-clogging surface filtration on drains, launders and coarse liquid separation.

Typical specSlot panels for drains; intake and trough screens

View product →

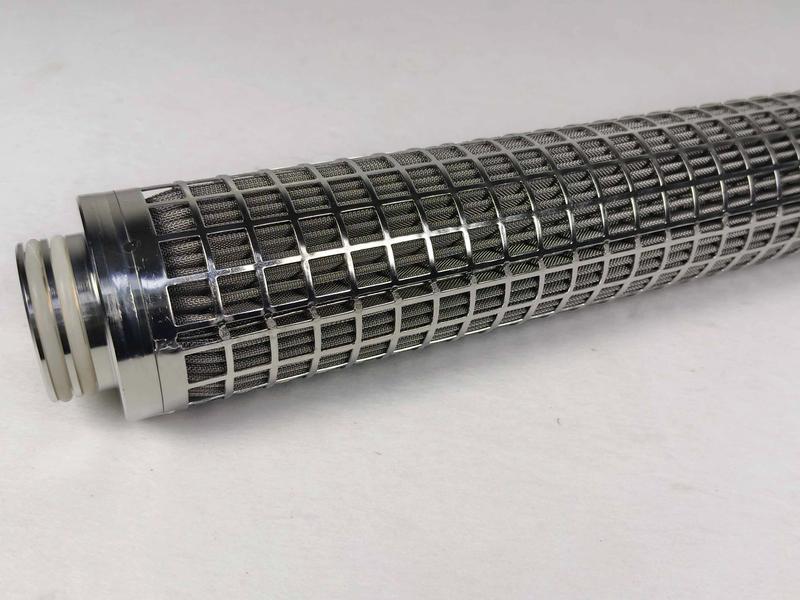

Stainless steel wire mesh filter cartridge samples

Pleated Filter Cartridge

Liquid polish on syrup, beverage and ingredient lines where cartridge housings are installed.

Typical specTri-clamp or DOE/SOE; SS316L; lengths per housing

View product →

Welded stainless steel mesh strainer basket assembly

Conical Strainer

Startup and batch transfer protection on ingredient and CIP return lines.

Typical specTemporary or permanent line protection; SS316L

View product →

Application gallery· 04

Product forms we supply.

SS316L woven wire mesh roll for food processing screens

Wedge wire drain screen panel in stainless steel

Stainless steel pleated filter cartridge for beverage polish

Process notes· 05

Process notes for ordering.

Food and beverage filtration must survive product contact, CIP chemicals and periodic audit review — retention may be mesh count, slot width or cartridge micron. Parameters below support RFQ review; compliance statements and temperature limits are confirmed per destination market and your QA file before production.

Parameter	Typical range (food & beverage)	Notes for RFQ
Product / media	Sugars; grains; beverages; CIP return	Viscosity; solids content; temperature
CIP chemistry	Caustic; nitric; peracetic blends	Concentration; peak CIP temperature
Contact material	SS316L typical for washdown duty	Regional compliance requirements on RFQ
Retention	Mesh count; slot mm; cartridge μm	State blinding history if known
Cleaning	CIP; manual; back-flush	Drives cartridge vs wedge wire choice
Documentation	MTC; inspection report	Vendor qualification scope on PO

Operating limits vary by equipment — values confirmed per project.

For vibratory decks, send deck diameter, mesh count and edge binding. For cartridges, send housing brand, length and seal type. Hygiene-sensitive finishes, sanitary weld areas and oil-free packaging are available when stated on the RFQ. Unit price and MOQ are confirmed after specification review.

Operating limits vary by equipment — values above are typical ranges, confirmed per project.

Representative cases· 06

Representative supply cases.

Australia

Representative supply — SS316L vibratory screen panels

Cut-to-size SS316L mesh panels with folded edges for vibratory deck installation — mesh count and dimensions confirmed per first article.

Netherlands

Representative supply — CIP-compatible cartridge elements

SS316L pleated cartridges sized to tri-clamp housing for beverage polish line — CIP temperature and chemistry reviewed before media selection.

FAQ· 07

Food and beverage questions.

Is SS316L mesh suitable for food contact screening?

SS316L is widely used for food processing screens and strainers. Note regional compliance requirements, product type and cleaning chemicals on the RFQ.

Can cartridges survive CIP cycles?

Yes — share CIP chemistry, concentration, peak temperature and required micron retention so media, core and seals are compatible.

Do you supply wedge wire for drain and intake panels?

Yes. Provide slot width, panel dimensions, frame attachment and alloy. SS316L is standard for washdown environments.

Can mesh be cut for round vibratory screen decks?

Yes. Send deck diameter, mesh count, wire diameter if known and edge binding requirements.

What documents support vendor qualification?

MTC and agreed inspection reports when listed on the PO — compliance statements confirmed per destination market, not assumed globally.

How do I reduce blinding on sugary or starchy duty?

Share throughput, solids loading and cleaning interval — we may recommend coarser pre-screen, wedge wire slot or graded mesh rather than only finer aperture.

Need help matching a product to Food and beverage? Share drawings or conditions.

Send material, size, opening, environment and quantity. Engineering confirms the product or fabrication route before quoting.
